View Equipment Operations from a Safer Location

The Pyro Ultra TX can transmit video from a compatible equipment-mounted camera to a remote monitoring position. This can help supervisors and crew members observe operations without crowding the active work area.

Share Sewer Inspection Video Wirelessly

When connected to compatible inspection equipment with an HDMI or SDI output, the transmitter can send the camera feed to a remote display for customer walkthroughs, crew review, training, or documentation.

Monitor Hydro Excavation and Vacuum Equipment

A compatible camera can be positioned to observe a boom, hose reel, debris tank, excavation area, or other work zone. The live feed can then be viewed from a supported receiver and monitor.

Improve Equipment Demonstrations

Dealers, trainers, and equipment operators can display a close-up camera feed on a larger remote monitor during demonstrations, operator training, trade shows, and customer events.

Give Multiple People Access to the Live Feed

Compatible multi-receiver configurations allow supervisors, operators, technicians, trainers, and customers to view the same video source from separate monitoring locations.

Key Features

• Wireless video transmitter for compatible HDMI and SDI equipment
• Supports HDMI video transmission up to UHD 4K60
• 3G-SDI input for compatible professional camera systems
• HDMI loop output for a local monitor at the transmitting location
• Long-range wireless transmission under clear line-of-sight conditions
• Low-latency Focus Mode for responsive monitoring
• Hollyland TWiFi dual-band transmission technology
• Uses the 2.4 GHz and 5 GHz frequency bands
• Automatic frequency hopping helps manage wireless interference
• Supports compatible multi-receiver monitoring configurations
• Built-in display for system status and settings
• NP-F-style battery plate for portable operation
• Locking DC input for equipment-mounted or stationary installations
• Compatible with supported devices in the Hollyland Pyro ecosystem
• Transmitter-only configuration

Recommended Applications

• Sewer inspection camera monitoring
• Pipeline and drain inspection
• Hydro excavation observation
• Vacuum truck equipment monitoring
• Hose reel and boom observation
• Remote jobsite video monitoring
• Equipment demonstrations
• Operator training
• Municipal crew training
• Trade show displays
• Customer inspection walkthroughs
• Industrial maintenance observation
• Utility locating demonstrations
• Remote service and troubleshooting support
• Camera feeds from equipment-mounted monitoring systems
• Live video between a work area and service vehicle

Potential Equipment Monitoring Locations

Depending on the camera system and installation, the Pyro Ultra TX may be used to transmit video from cameras observing:

• Sewer inspection operations
• Hose reels
• Vacuum booms
• Excavation areas
• Debris tanks
• Equipment controls
• Nozzle and hose deployment
• Pipe entry points
• Confined or difficult-to-view work areas
• Equipment demonstrations
• Maintenance procedures
• Training exercises

The Pyro Ultra TX is a video transmission device, not a camera or safety system. It should not replace required spotters, mirrors, certified vehicle cameras, safety procedures, or direct operator visibility.

Product Specifications

• Brand: Hollyland
• Model: Pyro Ultra TX
• Part Number: HL-PYRO ULTRA TX
• Product Type: Wireless video transmitter
• Configuration: Transmitter only
• Maximum HDMI Transmission Resolution: UHD 4K at 60 fps
• SDI Connection: 3G-SDI input
• HDMI Connections: HDMI input and HDMI loop output
• Maximum Advertised Range: Up to 4,900 ft under supported clear line-of-sight conditions
• Lowest Advertised Latency: Approximately 20 ms with supported signals and configurations
• Wireless Technology: Hollyland TWiFi
• Wireless Bands: 2.4 GHz and 5 GHz
• Frequency Management: Automatic frequency hopping
• Streaming Support: UVC and RTMP workflows
• Battery Compatibility: NP-F-style batteries
• External Power: Locking DC input
• Receiver Included: No
• Camera Included: No
• Monitor Included: No

Operating Modes

Standard Mode

Standard Mode is intended for wireless monitoring applications that prioritize range and dependable transmission. It is useful when sending video between separated areas of a large facility, outdoor worksite, demonstration area, or service operation.

Focus Mode

Focus Mode prioritizes responsive, low-latency monitoring. For Range Supply customers, this may be useful when the camera is being used to observe moving equipment, hose handling, inspection work, or tasks where reduced delay improves the usefulness of the live feed.

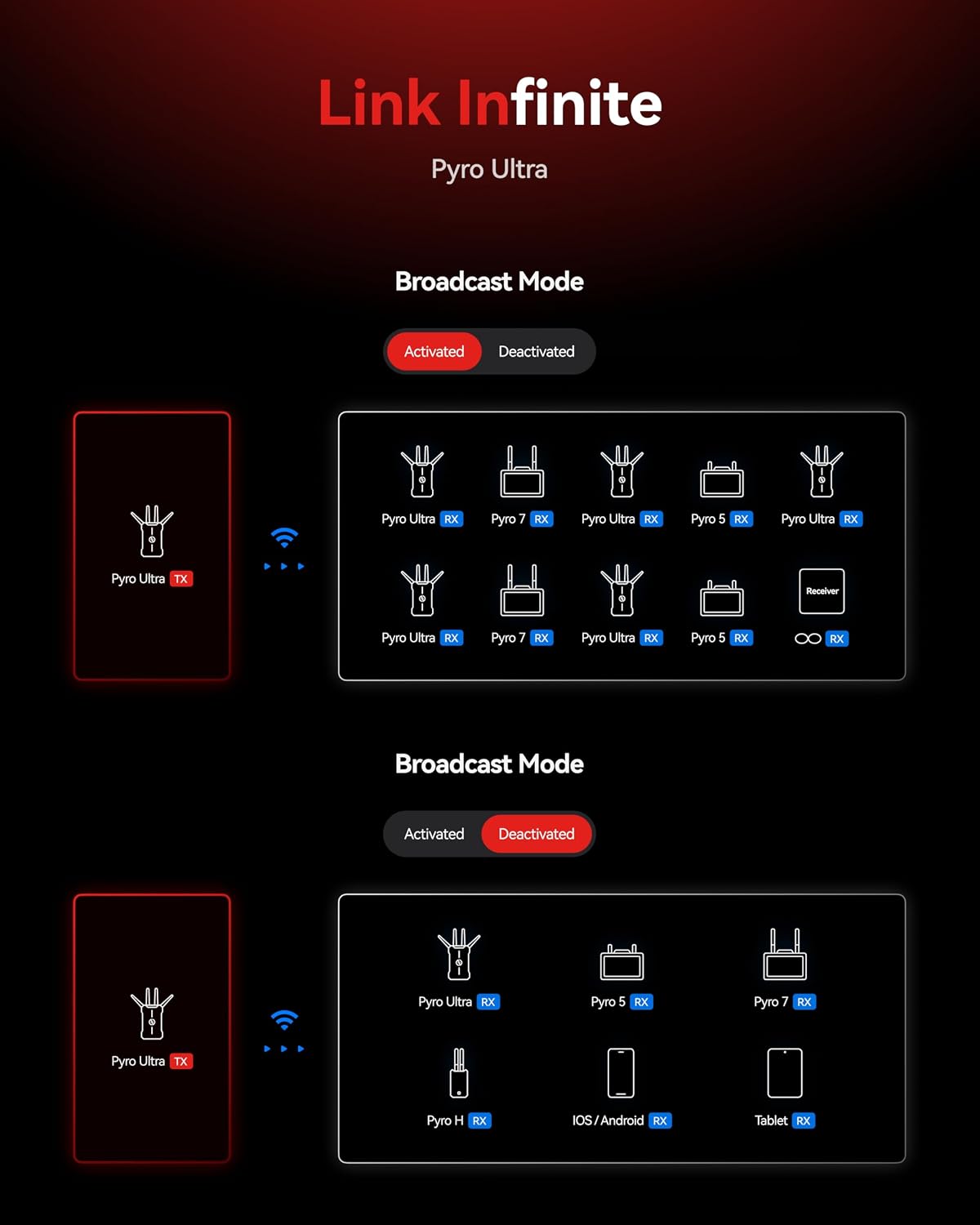

Broadcast Mode

Broadcast Mode supports compatible multi-receiver workflows. It can be useful during training, equipment demonstrations, municipal presentations, or jobs where multiple crew members need access to the same camera feed.

Compatibility Considerations

Before ordering, verify that:

• The video source has a compatible HDMI or SDI output
• A supported Hollyland receiver is available
• The receiving monitor accepts the receiver’s video output
• The camera output resolution and frame rate are supported
• The required HDMI or SDI cables are available
• An appropriate NP-F battery or DC power source is available
• The transmitter can be mounted securely
• The equipment location protects the transmitter from water, impact, heat, and excessive vibration
• The selected wireless system complies with local operating requirements

Frequently Asked Questions

What does the Hollyland Pyro Ultra TX do?

The Hollyland Pyro Ultra TX takes video from a compatible HDMI or SDI camera system and sends it wirelessly to a supported Hollyland receiver. The receiver can then provide the video to a monitor, recorder, computer, or compatible production device.

Can it transmit video from a sewer inspection camera?

Potentially, yes. The sewer inspection system must provide a compatible HDMI or SDI video output. Compatibility should be confirmed using the inspection system’s output specifications before ordering.

Can it be used on a vacuum truck or hydro excavation unit?

The transmitter may be incorporated into a compatible equipment-monitoring setup, provided it is securely mounted, correctly powered, and protected from water, debris, impact, heat, and excessive vibration.

It is not a complete vehicle camera system and should not replace required vehicle safety equipment or direct operator visibility.

Does it include a camera?

No. This product is a wireless video transmitter only. A compatible camera or inspection system is required.

Does it include a receiver?

No. This listing is for the Pyro Ultra TX transmitter only. A compatible Hollyland receiver is required for standard wireless monitoring applications.

Does it include a monitor?

No. Cameras, receivers, monitors, video cables, batteries, and mounting accessories are sold separately unless specifically listed as included.

What connections does the transmitter accept?

The Pyro Ultra TX accepts compatible HDMI and 3G-SDI video signals. It also provides an HDMI loop output for connecting a local monitor at the transmitting location.

How far can the Pyro Ultra TX transmit?

The advertised maximum range is up to approximately 4,900 feet under supported clear line-of-sight conditions. Vehicles, structures, terrain, equipment, people, wireless interference, antenna placement, and operating mode can reduce the effective range.

Can several people watch the same camera feed?

Yes, when the transmitter is used with a supported multi-receiver configuration. This can be helpful for crew training, equipment demonstrations, supervisory monitoring, and customer inspection reviews.

Can it send inspection video directly to a phone?

Mobile monitoring capabilities depend on the selected Hollyland configuration, receiver, app, operating mode, and connected devices. Confirm the complete workflow before purchasing if phone or tablet viewing is required.

Is the Pyro Ultra TX waterproof?

Do not assume the transmitter is waterproof or suitable for unprotected exposure to wastewater, rain, spray, slurry, mud, or washdown operations. Install the unit in a protected location and follow the manufacturer’s environmental and mounting requirements.

Can it be used as a backup camera system?

The transmitter may carry video from a compatible camera, but it is not presented as a certified vehicle backup or collision-avoidance system. It should not replace required mirrors, spotters, direct visibility, alarms, or purpose-built vehicle safety cameras.

Product: Professional wireless video transmitter
Brand: Hollyland
Model: Pyro Ultra TX
Part Number: HL-PYRO ULTRA TX
Configuration: Transmitter only
Primary Function: Sends video from a compatible HDMI or SDI source to supported wireless receivers
Maximum HDMI Resolution: UHD 4K60
Maximum Advertised Range: Up to 4,900 ft under clear line-of-sight conditions
Lowest Advertised Latency: Approximately 20 ms in a supported configuration
Video Inputs: HDMI and 3G-SDI
Local Monitoring: HDMI loop output
Suggested Applications: Sewer inspection, equipment monitoring, hydro excavation observation, vacuum truck monitoring, training, and demonstrations
Receiver Included: No
Camera Included: No
Monitor Included: No
