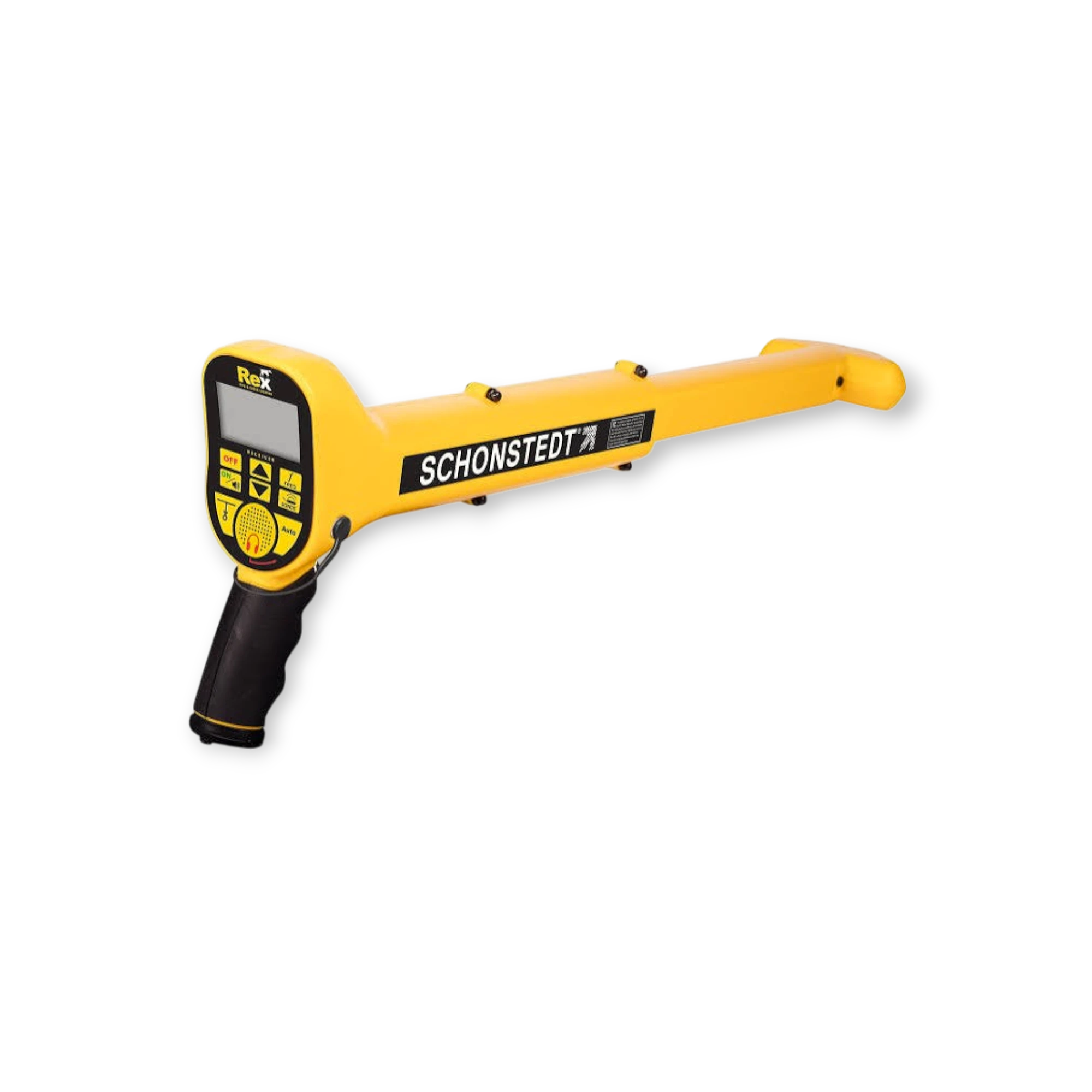

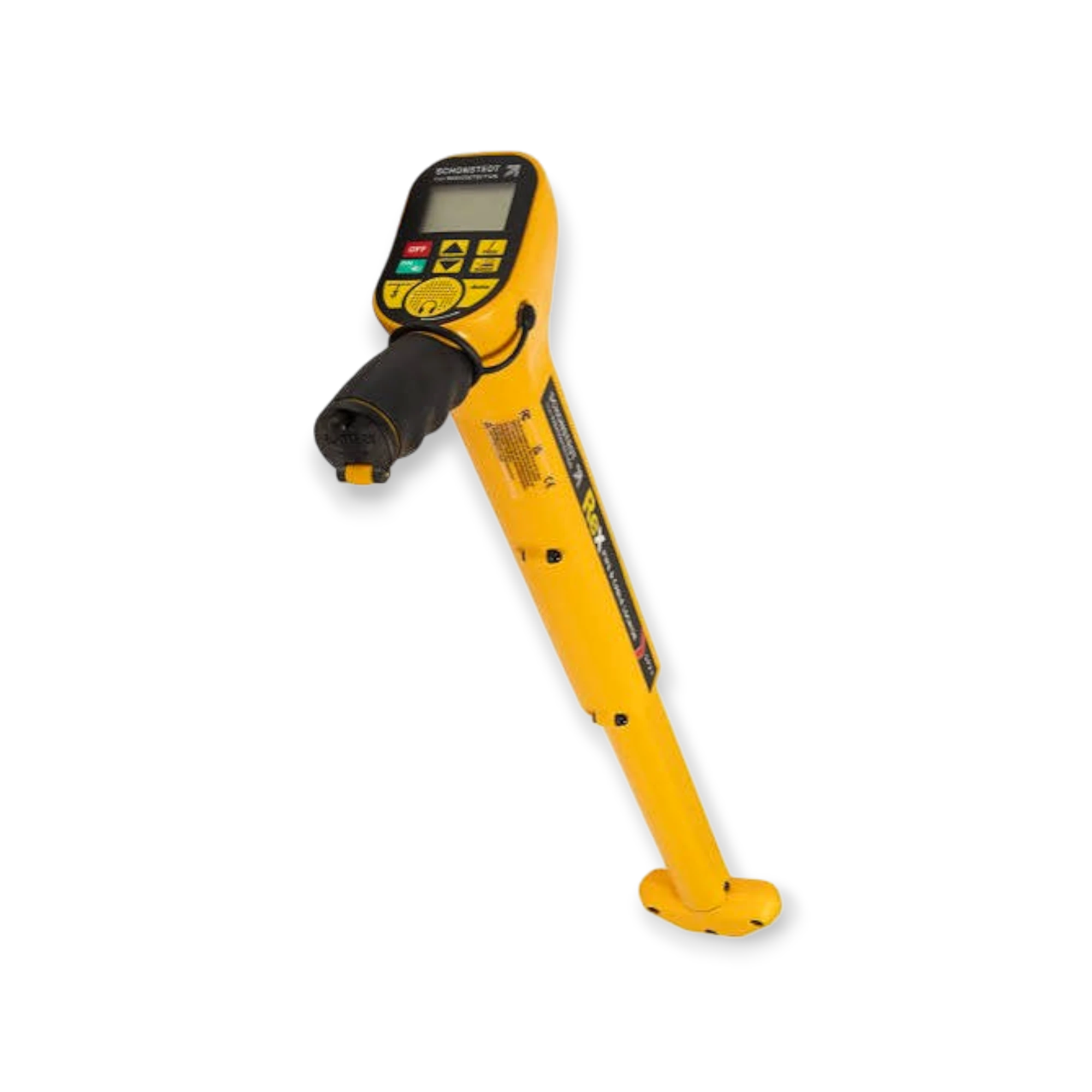

Schonstedt REX Pipe & Cable Locator

The Schonstedt REX Pipe & Cable Locator is a multi-frequency utility locating system designed for locating water, sewer, and gas pipes as well as electric and telecommunications cables. With three active locating frequencies, passive power detection, 512 Hz sonde capability, and a powerful 5-watt transmitter, the REX provides the flexibility needed for a wide range of underground utility locating applications.

Schonstedt specifically describes the REX as a three-frequency locator for all utilities, operating at 512 Hz, 33 kHz, and 82 kHz.

Three Frequencies for Versatile Utility Locating

The REX gives operators multiple frequency options to adapt to different locating conditions. Its receiver supports 512 Hz, 33 kHz, and 82 kHz active frequencies, along with passive 50/60 Hz power detection and 512 Hz sonde locating.

The system's transmitter provides up to 5 watts of output power at 512 Hz and 33 kHz and supports conductive, inductive, and inductive clamp operating modes.

Key Features

• 512 Hz, 33 kHz, and 82 kHz active frequencies
• 512 Hz sonde detection
• 50/60 Hz passive power detection
• Up to 5W transmitter output
• Conductive, inductive, and inductive clamp transmitter modes
• Maximum locating depth of approximately 19 ft. (5.8 m)
• Retractable receiver for easier transportation
• Rechargeable transmitter battery
• Compact, lightweight transmitter
• IP54-rated receiver and transmitter
• Complete locating kit with carrying case

Common Applications

The Schonstedt REX is designed for locating:

• Water lines
• Sewer lines
• Gas pipes
• Electrical cables
• Telecommunications cables
• Other conductive underground utilities
• Compatible 512 Hz sondes

Schonstedt specifically identifies water, sewer, and gas pipes along with electric and telecom cables as primary REX applications.

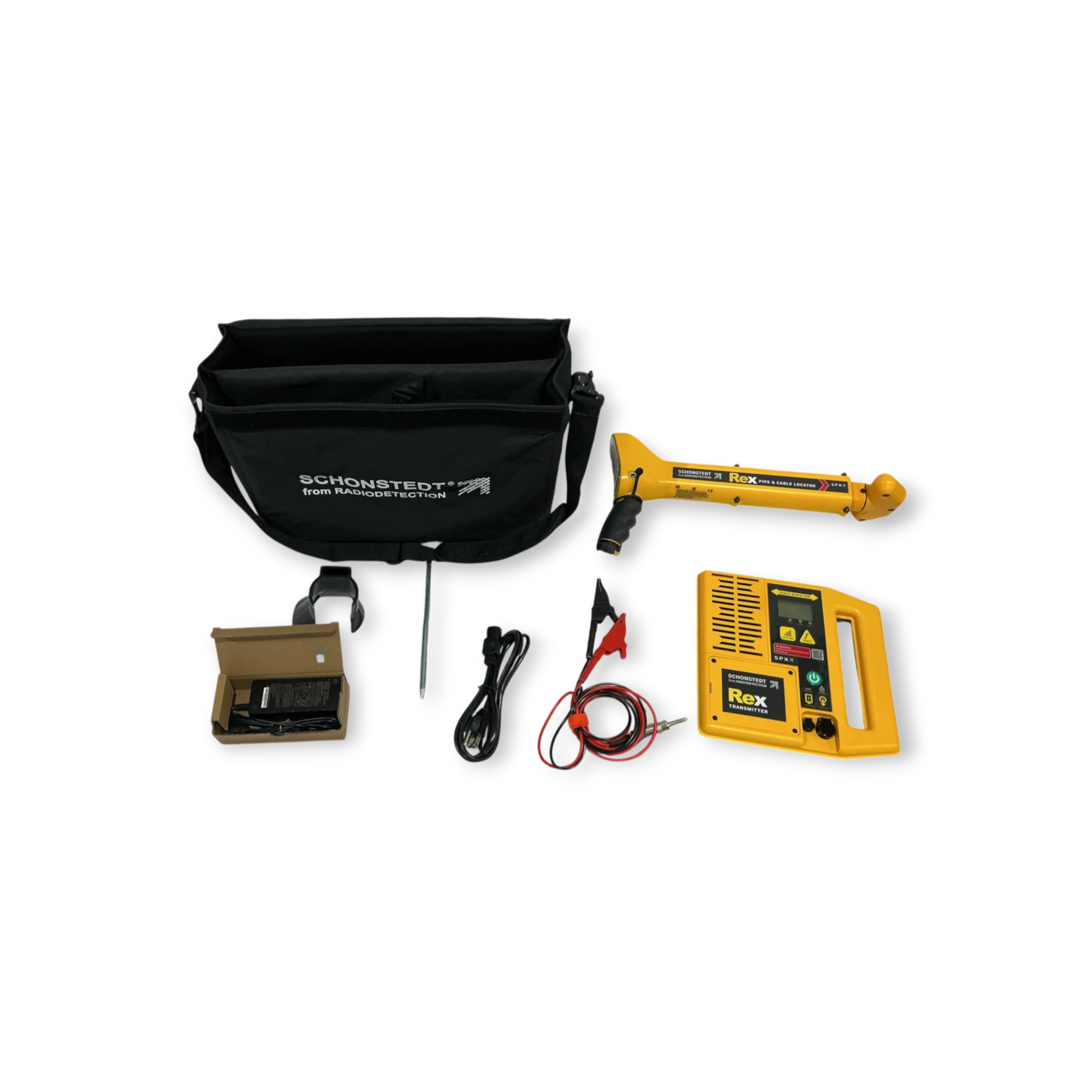

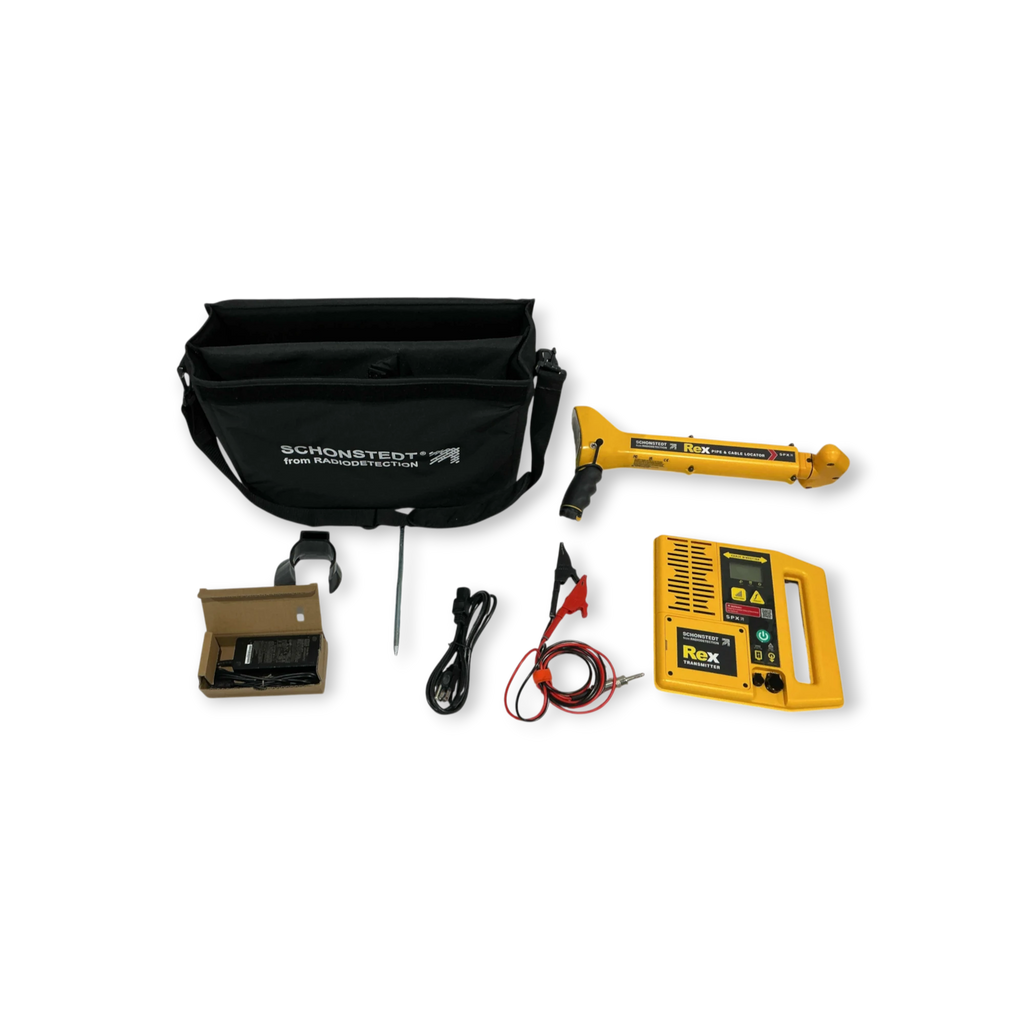

What's Included

• REX Receiver
• REX 5W Transmitter
• Ground Stake
• Power Supply
• Conductive Clips Assembly
• Holster Clip

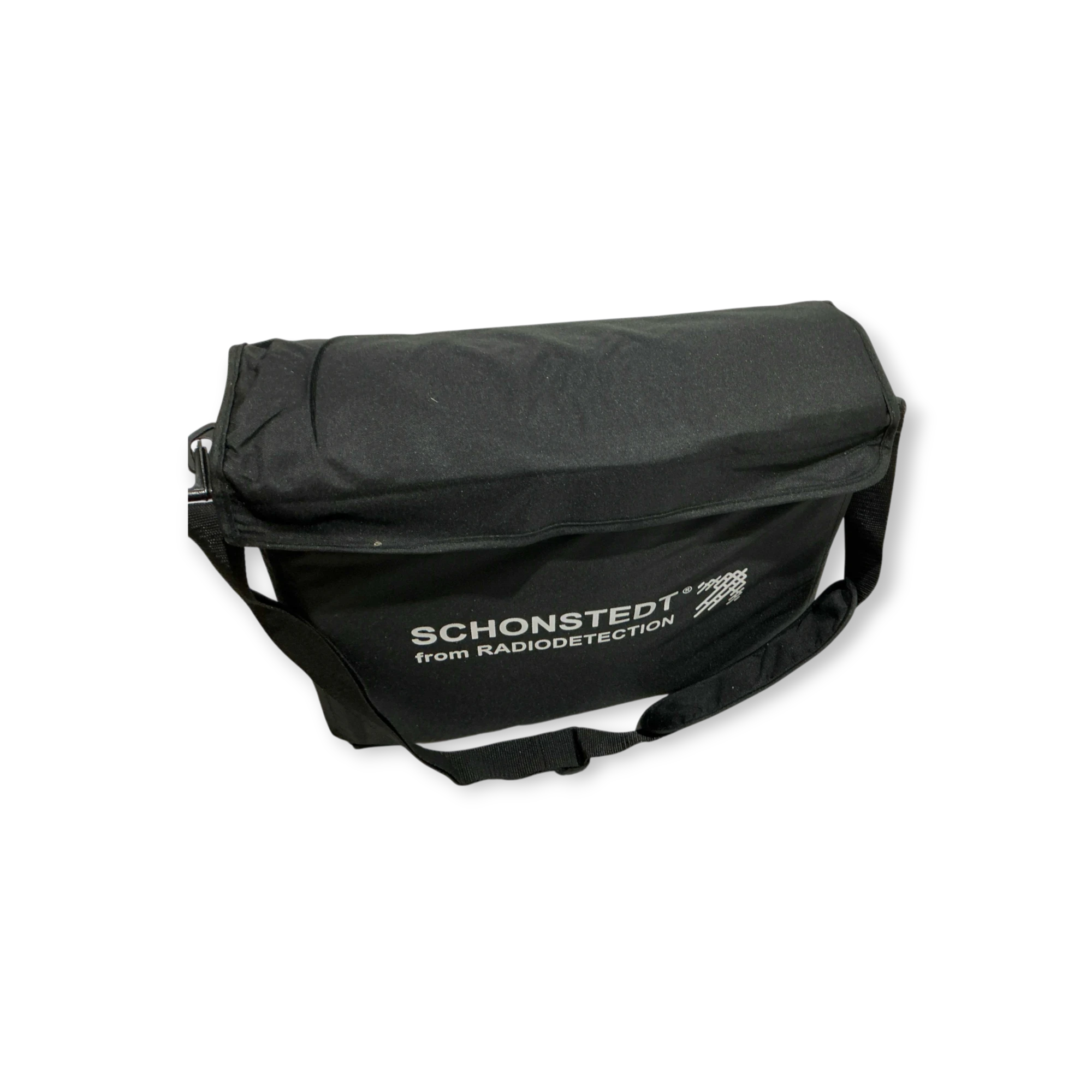

• Padded Carrying Case
