Schonstedt u-LOCATE+ Pipe & Cable Locator

The Schonstedt u-LOCATE+ Pipe & Cable Locator is a versatile utility locating system designed to help contractors quickly and accurately identify buried utilities before excavation. With multiple active frequencies, passive power detection, and 512 Hz sonde capability, the u-LOCATE+ provides greater locating flexibility than the standard u-LOCATE.

The u-LOCATE+ operates at 33 kHz and 82 kHz active frequencies, supports 512 Hz sonde detection, and includes a 1-watt transmitter.

Versatile Utility Locating

The u-LOCATE+ combines straightforward operation with expanded locating capabilities for a variety of underground infrastructure. Its active frequencies can be used for locating conductive utilities, while passive power mode allows operators to identify live power cables.

Unlike the standard u-LOCATE, the u-LOCATE+ also features a 512 Hz sonde mode, allowing operators to trace compatible sondes and inspection cameras through non-metallic pipes, ducts, and conduits.

Key Features

• 33 kHz and 82 kHz active locating frequencies
• 512 Hz sonde detection
• 50/60 Hz passive power mode
• Maximum active locating depth up to 19 ft. (5.8 m)
• Sonde locating depth up to 15 ft. (4.5 m), depending on sonde type
• Left/right guidance arrows
• Depth estimation
• High-contrast display
• Visual and audible indicators
• Lightweight, ergonomic design
• Rugged, shock-resistant construction
• 1-watt transmitter

Schonstedt rates the u-LOCATE+ receiver to IP65 and the transmitter to IP54 for protection in field environments.

Common Applications

The Schonstedt u-LOCATE+ can be used for locating and tracing:

• Water lines
• Gas lines
• Telecom lines
• Live power cables
• Conductive buried utilities
• Compatible 512 Hz sondes
• Inspection cameras in non-metallic pipes
• Underground ducts and conduits

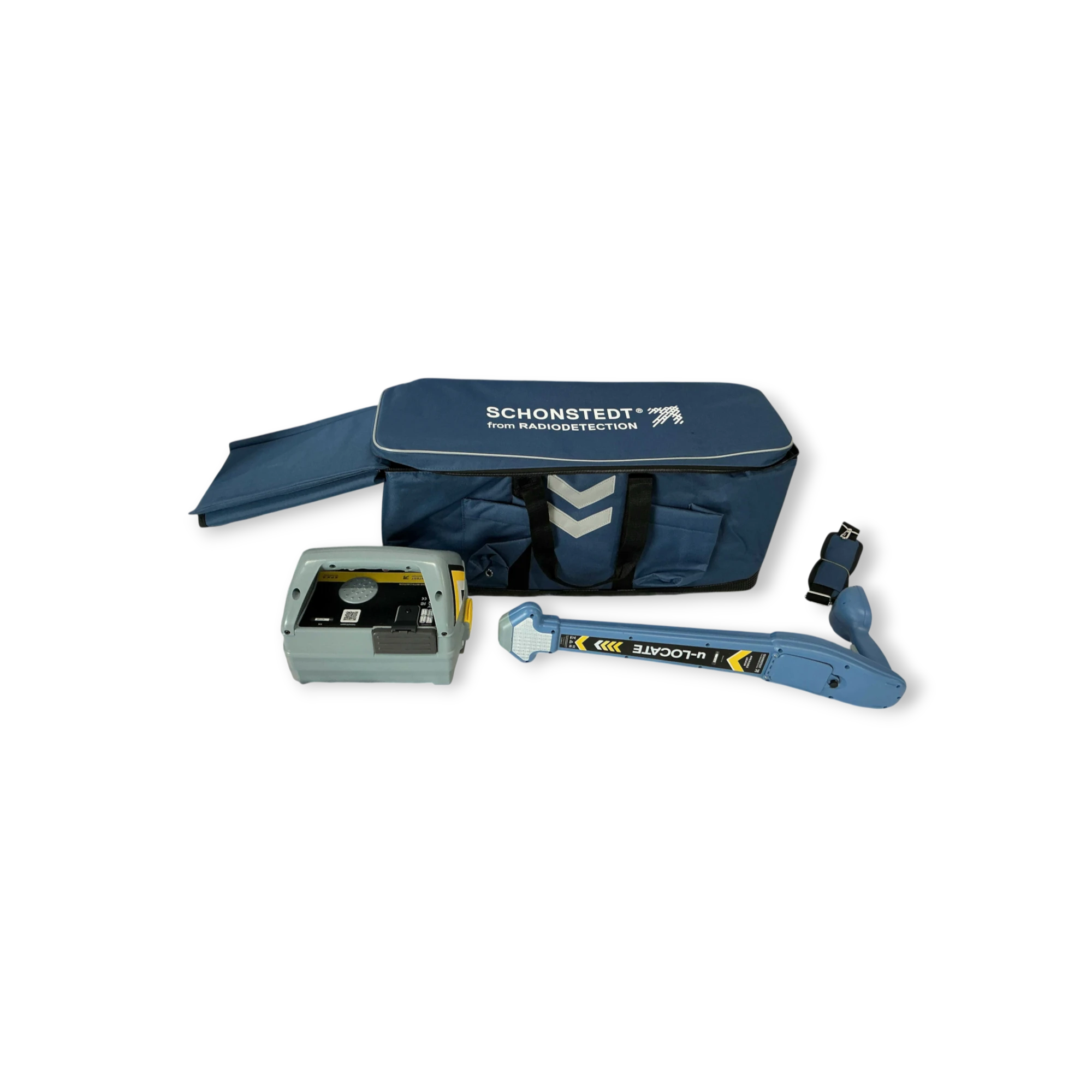

What's Included

• u-LOCATE+ Receiver
• 1W Transmitter
• Direct Connection Lead
• Magnet
• Extension Lead
• Earth Stake

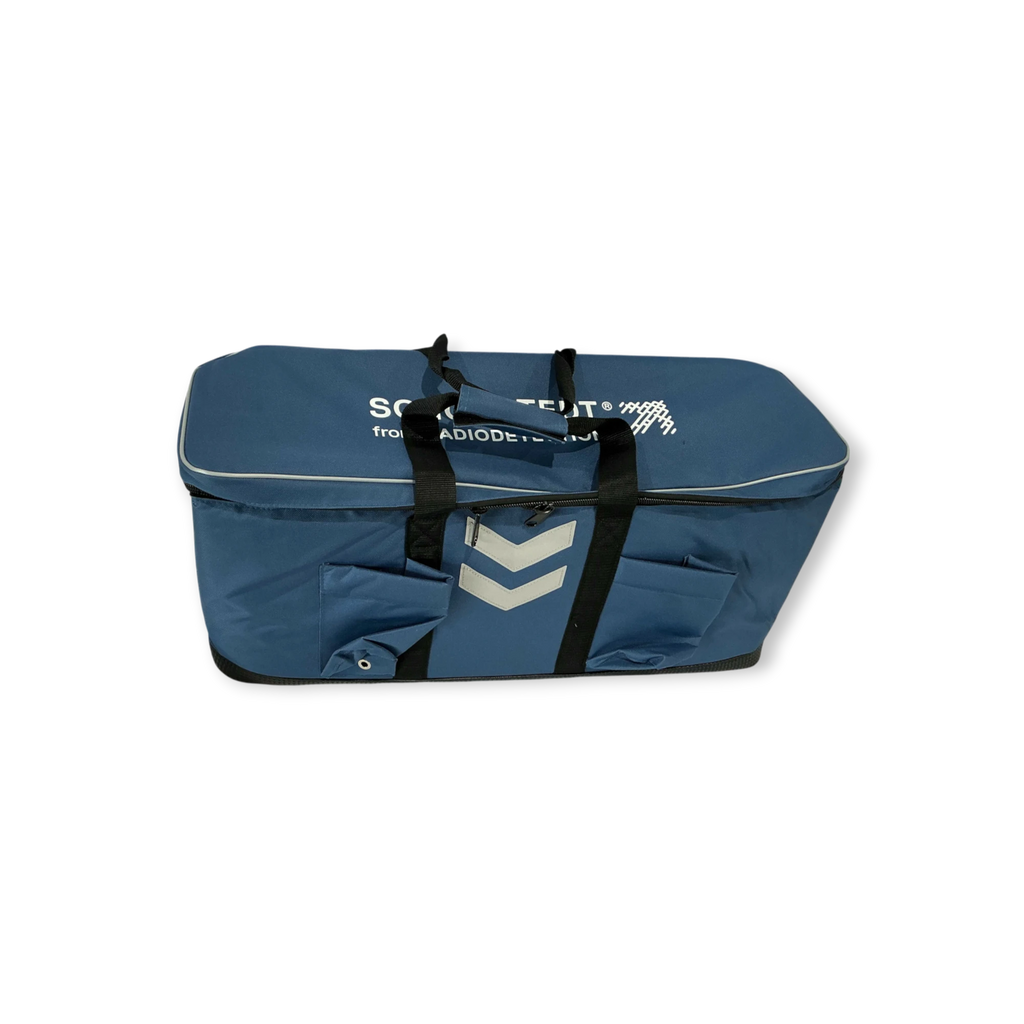

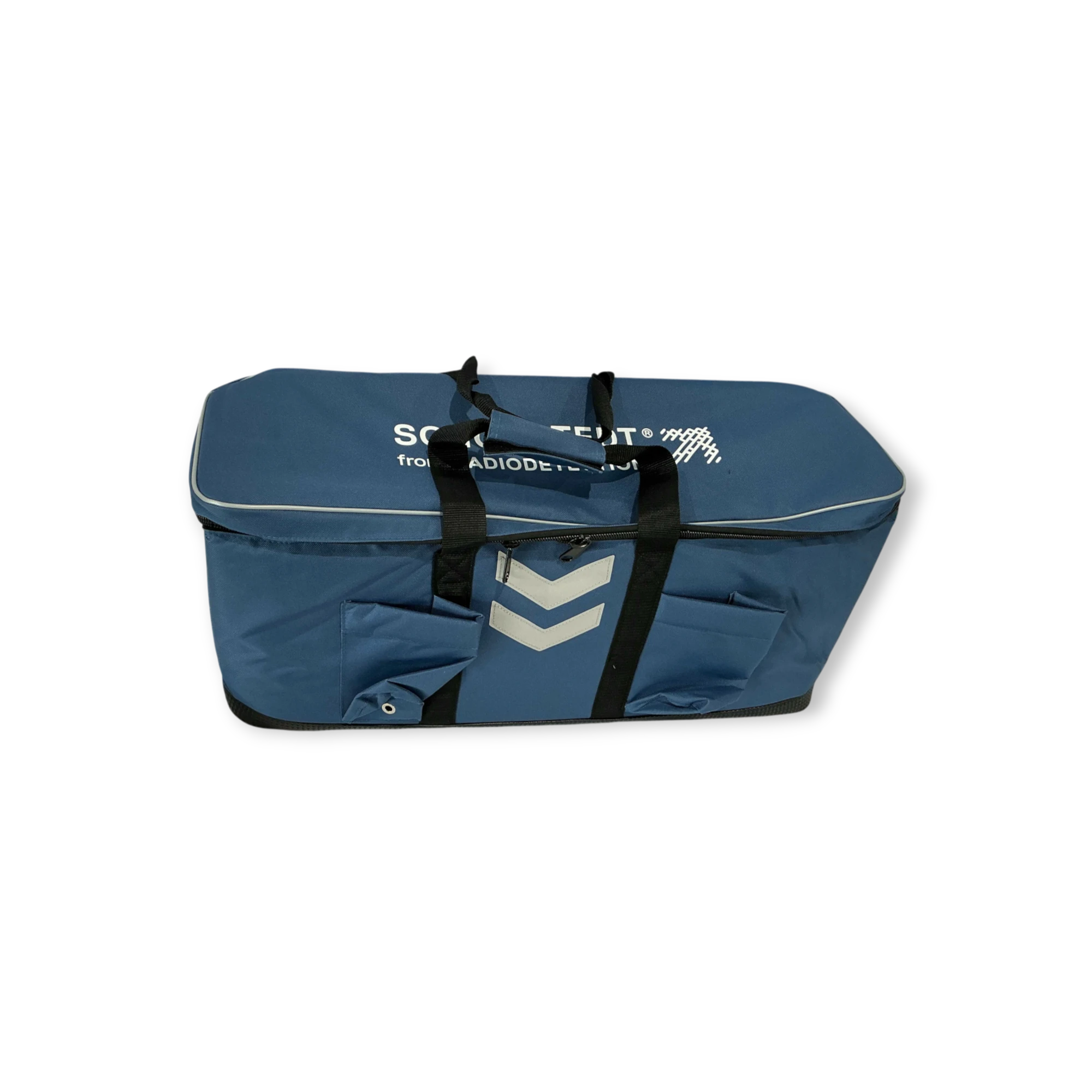

• Carrying Case
