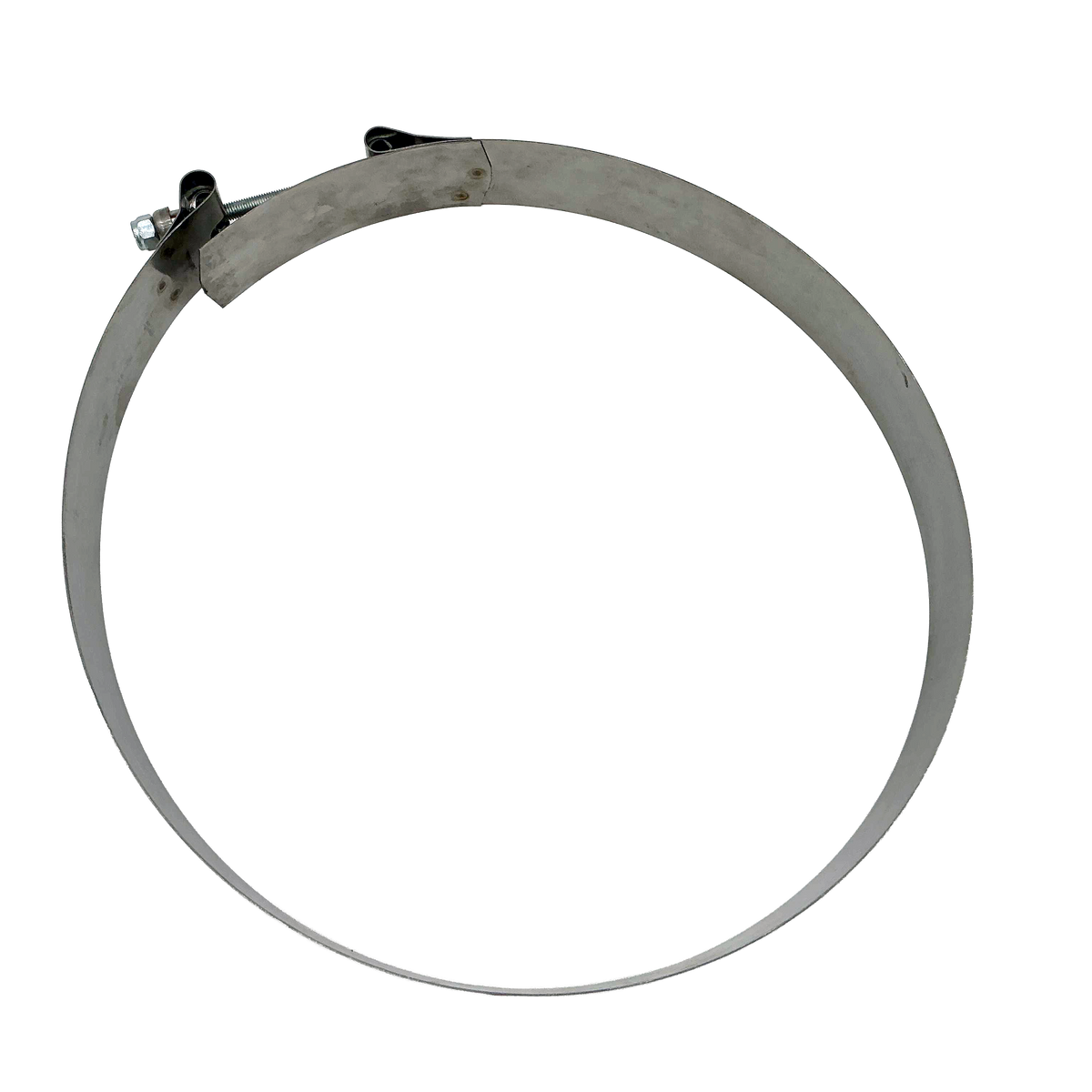

Replacement 10" Toggle Clamp for Vacuum Tube Compression Joints

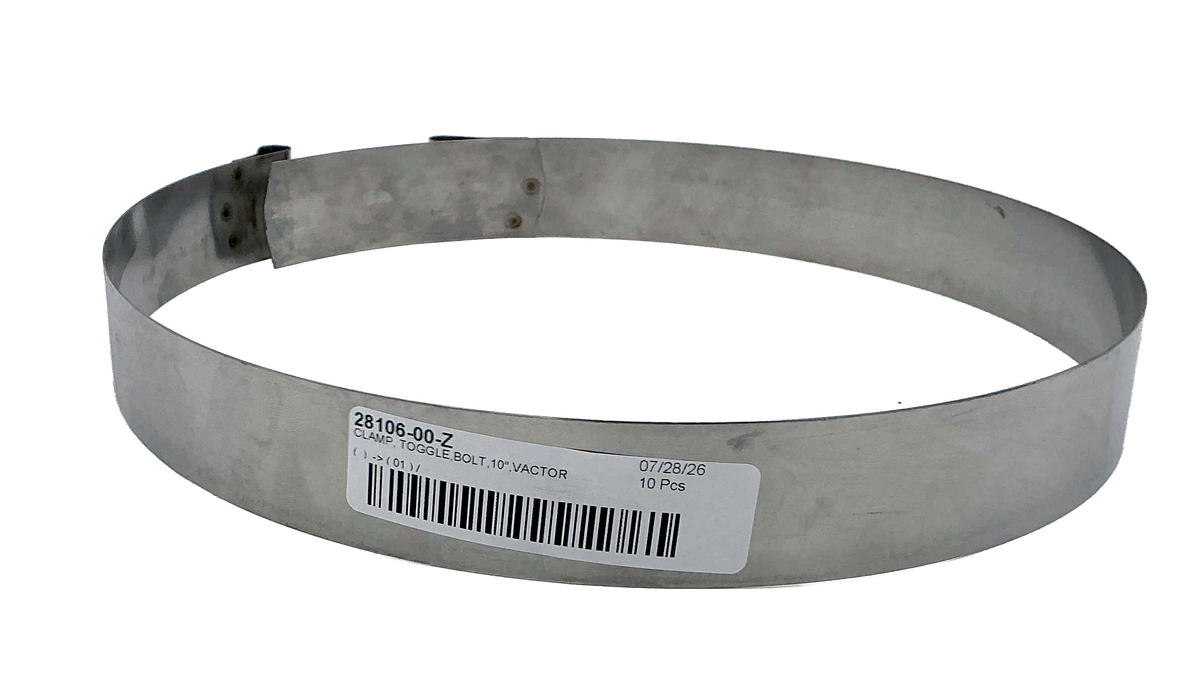

The UEMSI G70406 Compression Joint Toggle Bolt Clamp is a replacement 10-inch clamp for compatible Vactor 2100-style combination sewer cleaning equipment.

The toggle-style mechanism provides a practical way to secure compatible 10-inch compression-joint components used in vacuum and debris-handling systems. It allows crews to open and close the connection during equipment setup, tube changes, inspection, cleaning, and maintenance.

This replacement clamp is well suited for municipal fleet shops, sewer cleaning contractors, vacuum truck operators, and service technicians replacing a worn, bent, damaged, or incomplete compression-joint clamp.

Compatibility notice: Verify the equipment model, existing clamp part number, compression-joint diameter, mating components, and hardware requirements before ordering. This listing is for the toggle bolt clamp only unless otherwise stated.

Key Features

• 10-inch compression-joint toggle bolt clamp
• Designed for compatible Vactor 2100-style equipment
• Secures compatible vacuum tube compression-joint connections

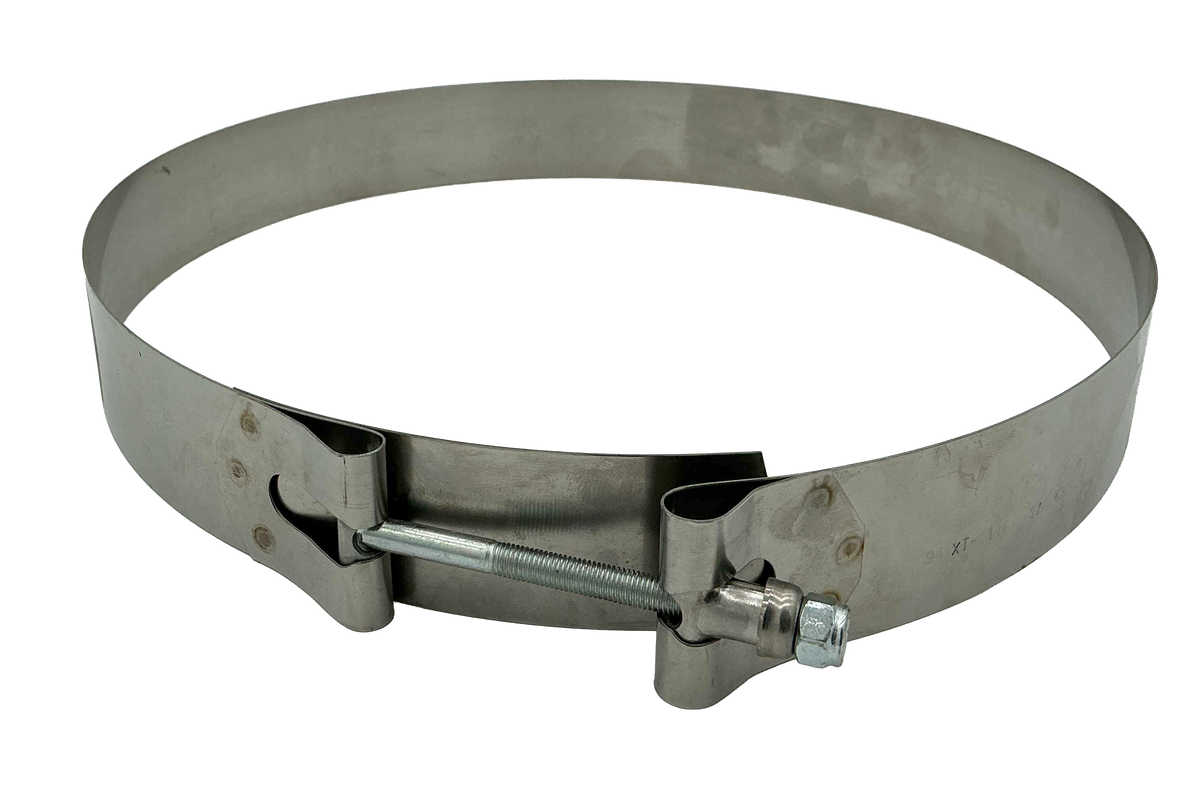

• Toggle mechanism supports efficient opening and closing
• Replacement for worn, damaged, bent, or missing clamps

Recommended Applications

• Vactor 2100-style combination sewer cleaners
• Vacuum and debris tube connections
• Sewer cleaning truck repairs
• Catch basin and wastewater equipment
• Municipal and contractor fleet maintenance

Product Specifications

• Manufacturer: UEMSI/HTV
• Part Number: G70406
• Product Type: Compression-joint toggle bolt clamp
• Nominal Size: 10"
• Clamp Style: Toggle bolt
• Equipment Compatibility: Select Vactor 2100-style equipment
• Primary Application: Vacuum tube compression joints
• Quantity: 1 clamp
• Gasket Included: No, unless specifically stated
• Additional Hardware Included: Confirm before ordering

Replacement Considerations

Inspect the existing clamp and compression joint if the connection is difficult to secure, will not maintain even pressure, or shows visible damage.

Common reasons for replacement include:

• Bent or distorted clamp body
• Damaged toggle mechanism or bolt
• Cracked or worn connection points
• Corrosion that affects adjustment or closure
• Uneven compression around the joint

The clamp works as part of a complete connection. Inspect the mating flanges, gasket, tube alignment, hinge points, and related hardware before returning the equipment to service.

Installation Notes

Before installing the G70406:

• Secure the equipment and relieve system vacuum
• Verify the 10-inch joint size and clamp compatibility
• Inspect the gasket and mating surfaces
• Align the connected components before tightening
• Adjust the toggle mechanism for even compression
• Test the joint for security and vacuum leakage

Do not use the clamp to pull severely misaligned tubes or damaged components together. Correct alignment or component damage before tightening the joint.

Frequently Asked Questions

What is the UEMSI G70406?

The G70406 is a 10-inch compression-joint toggle bolt clamp for compatible Vactor 2100-style sewer cleaning equipment.

What does the clamp secure?

The clamp secures compatible 10-inch compression-joint components used in vacuum tube and debris-handling systems.

Does the G70406 fit every Vactor truck?

No. Equipment and compression-joint configurations can vary. Confirm the existing part number, joint size, truck model, and mating components before ordering.

Is a gasket included?

Treat the G70406 as the toggle bolt clamp only unless Range Supply’s inventory or packaging specifically states that a gasket is included.

When should the clamp be replaced?

Replacement may be necessary if the clamp is bent, cracked, heavily corroded, difficult to close, unable to maintain even pressure, or has a damaged toggle mechanism.

Can this clamp correct a leaking compression joint?

A new clamp may correct leakage caused by poor or uneven clamping. Leaks can also result from a damaged gasket, misaligned tubing, bent flanges, worn mating surfaces, or incorrect adjustment.
